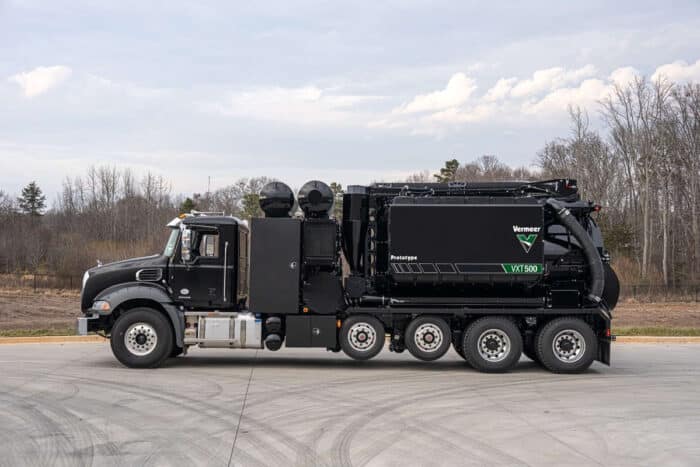

New Vermeer Vacuum Truck Models Deliver Enhanced Performance
The new Vermeer VXT400 and VXT500 vacuum trucks feature a 25-ft (7.6-m) boom with 330-degree rotation, dual digging capability that lets two operators work simultaneously.
The VXT400 delivers 4,131 cfm (117 m³/min) airflow and 18 in Hg (0.61 bar) vacuum with spoil tank options of 8, 10 or 12 yd3 (6.1, 7.6 or 9.2 m³) starting at 32,500 lb (14,741 kg) dry weight. The VXT500 features 5,018 cfm (142 m³/min) airflow and 27 in Hg (0.91 bar) vacuum with 10 and 12 yd3 (7.6 or 9.2 m³) configurations starting at 35,300 lb (16,011 kg). These Vermeer vacuum trucks also feature 3,000 psi (206 bar) water pressure and a patent-pending camera system with boom reach radius overlay.
“We designed these vacuum truck models based on years of customer feedback and lessons learned from our previous hydrovac equipment,” said TJ Steele, product manager for Vermeer MV Solutions. “The VXT400 brings together the reliability contractors need with the performance to handle demanding jobs, while the VXT500 delivers more airflow and vacuum for higher production. These vacuum excavator models help contractors move more material, finish more jobs and work in more places.”
Dual digging boosts vacuum excavator efficiency
These Vermeer vacuum trucks feature dual digging capability, allowing two operators to work simultaneously from separate dig points to push daily output and complete projects faster. The side-stow boom allows the dig tube to stay connected during transport, minimizing setup time between job sites and maximizing hydrovac operational efficiency.
The patent-pending optional camera system with boom reach radius overlay shows vacuum excavator operators exactly where they can dig before parking the truck, eliminating wasted setup time and helping crews position for maximum coverage. The 25-ft (7.6-m) boom offers 330-degree rotation for improved positioning flexibility.
Hydrovac reliability for demanding applications
The VXT400 and VXT500 feature a hydraulically driven water system that automatically shuts off when water flow stops and operates only at the speed required. This eliminates unloader valve wear and reduces maintenance while delivering longer system life and improved energy efficiency. The 3,000 psi (206 bar) water pressure at 10 gpm (38 L/min) with optional 19.4 gpm (73 L/min) provides consistent cutting power in tough soil conditions.
Built-in interlocks protect both components and operators by catching issues early and helping equipment run longer with fewer interruptions. For year-round operation, these vacuum truck models include winterization capabilities that maintain operation and longevity during freezing conditions.
Quiet vacuum truck operation for urban job sites
Designed for quiet operation, these Vermeer vacuum trucks promote a more comfortable working environment with less neighborhood disturbance, enabling contractors to work confidently in residential areas. Advanced controls provide intuitive operation that simplifies machine interaction and shortens the learning curve.
A common platform across Vermeer vacuum truck models minimizes onboarding and training time, improving operational efficiency across an entire fleet. Operators familiar with one Vermeer vacuum truck can efficiently operate others in the lineup.
- VXT400: 4,131 cfm (117 m³/min) airflow and 18 in Hg (0.61 bar) vacuum. Available in three GVWR options: 58,000 lb (26,308 kg), 76,000 lb (34,473 kg) or 86,000 lb (39,009 kg) with spoil tank capacities of 8, 10 or 12 yd3 (6.1, 7.6 or 9.2 m³). Boom options include 6-in (15.2-cm) or 8-in (20.3-cm) diameter with telescoping or hose handling configurations.
- VXT500: 5,018 cfm (142 m³/min) airflow and 27 in Hg (0.91 bar) vacuum with 10 and 12 yd3 (7.6 or 9.2 m³) spoil tank options. Available in 76,000 lb (34,473 kg) and 86,000 lb (39,009 kg) GVWR configurations. 8-in (20.3-cm) diameter boom with telescoping or hose handling configurations.
Both vacuum excavator models feature a 50-degree spoil tank tilt with cam-over hydraulic rear door for fast dumping and tight cycle times.
Watch the VXT400 and VXT500 launch video to see these vacuum truck models in action.
For more information about the Vermeer VXT400 and VXT500 vacuum trucks, contact your local Vermeer dealer or visit vermeer.com.
